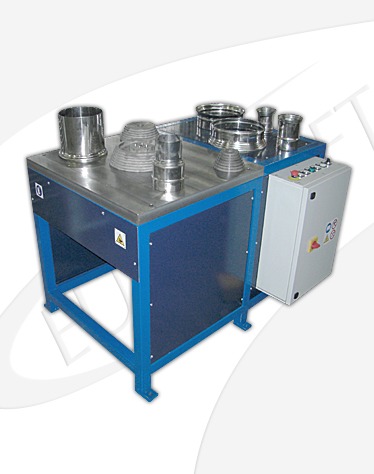

Pipe Expander

Pipe Expander

Hydraulic machine for flaring circular shapes composed of:
- Electro-welded frame.
- Base plate milled.
- Hydraulic unit composed of: tank – motor – pump – solenoids of restraint.
- Hydraulic cylinder with mandrel and cone expander.
– Working: min. D. 80 mm – max. D. 800 mm (on request up to 1200 mm);
- Thickness: from 0,4 a 1 mm – material: inox;
- CE Marks and Declaration of Conformity
- Dimensions: L 1300 mm – W 1000 mm – H 900 mm;
- Supply: 380 Volt – 3 phases – 50 Hz;
- Power: 4 Kw;
- Weight: Kg 600,00.

FLARING TOOLS
- From D. 80 mm to D. 150 mm
- From D. 160 mm to D. 200 mm
- From D. 220 mm to D. 400 mm
- From D. 450 mm to D. 800 mm
- From D. 850 mm to D. 1200 mm

Tool set for creation reductions
Tool with 7 step for diameter 80-140
Tool with 7 step for diameter 150 210
Tool with 7 step for diameter 220-280
Tool with 7 step for diameter 290-350

In order to improve the product Eurosoft reserves the right to make changes without notice.
