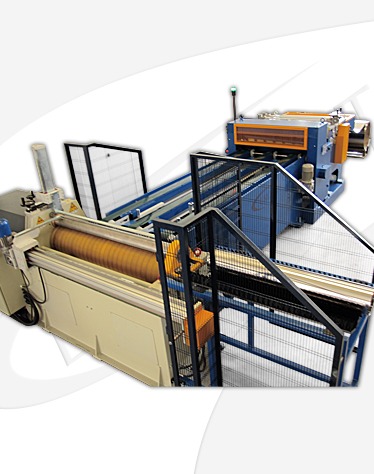

Cutting and rolling line2 rolls 1000 mm
Rolling line for the building of round and oval tubes. It is composed of the following modules:
Decoiler
Manual-decoiler max 5000 kg, with manual expansion of the mandrel and adjustable brake.
Straightened
ith 7 trees (2 pulling and 5 rectifiers) chromed steel.
Diameter. shaft 100 mm, adjustable via flyers benchmark measure for input plate with adjustable brushless motor from ABB 1.5Kw or other leading brand, bi-directional incremental encoder
Guillotine
Mechanic guillotine shears – steel shears power Kw 2.2.
Reversible blades sharp two-wire special stee
Table transport.
Steel table to carry pieces and antiscratch trolley to put pieces in the bending machine
Roller machine with 2 rolls
Model Hi-Tech roller 2, is a machine that allows initial calendering – body calendering – final calendering in one step.
The main features of this model are:
processing speed, very precise work
The machine 2 rolls, bending rolls has two overlapping one roll steel upper and lower roller motorized special material (urethane).
In one pass you get a ferrule without flat parts and perfectly circular
Roll for training diameter 80 mm
thickness 0.45 -0.5 mm
Roll for training 100 mm thickness
0,4 -0,5 mm
Roll for training 120 mm thickness 0,4 -0,5 mm
FLEX ROLL for diameters from 120 to 450 mm. 0,4 -0.6
Automatic aluminum ejector.
Automatic positioning of the tubes on the table with sensor of fully space
Electric cabinet for control machine
Cn and PC panel with O.S> WindowsXp Embedded.
Productivity: about120 tubes/hour D. 200 mm.
Diameters from 80 to 800 mm.
In order to improve the product Eurosoft reserves the right to make changes without notice.
