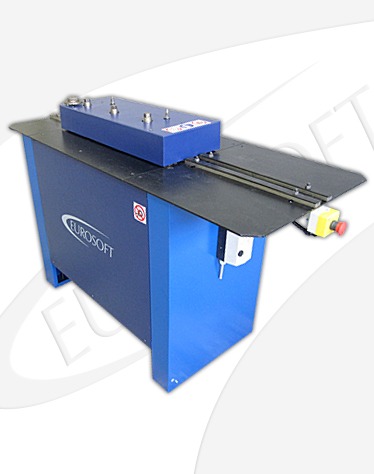

Profile Snaplock WS20
Flanging Machine with TWO forming positions and NINE forming stations:
– Heavy electro welded steel structure
– Rolls for flange “snaplock” (male 90° with notch)
– Rolls for flange “snaplock” (female 90°)
– Materials: Galvanised sheet metal
– Thickness: min 0,6 to . max 1,0 mm
– Working speed: 8 meters/minute
– Motor Kw 1,5 – 380 Volt – 50 Hz – 3 phase
– Dimensions: 1650 mm – P 615 mm – H 1000 mm
– Weight Kg. 275.
In order to improve the product Eurosoft reserves the right to make changes without
notice.
